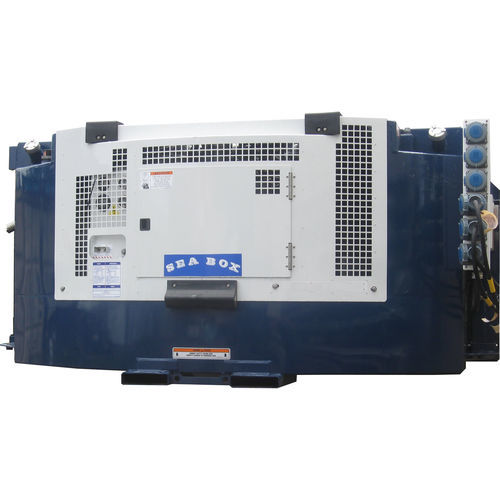

Diesel generator set SB572 series

three-phasestationary50 Hz

The “Clip On” Generator Set is designed to clip on to the front frame of a 40' refrigerated container. This unit is self contained with an integral fuel tank combined with engine, generator, battery and all operating controls. STANDARD FEATURES • Voltage Output: 460 VAC, 3 phase, 60 Hz only • Container clip on to top header with pins • All steel frame with integral 130 gallon fuel tank which allows the unit to run for more than 12 hours • Generator set is equipped with fork lift slots for removal and service • Solid state battery charger • Electrostatic coated tube and fin radiator • 12V DC maintenance free battery • CEE-17 female outlet receptacle with circuit breaker • Operations Manual • Parts List Manual • This unit is designed for quick installation to the front frame of nearly all 20’ and 40’ refrigerated ISO containers • Warranty - Standard 3 Years, Complete Gen Set - workmanship and markings and 5 Years on paint • ENGINE • Kubota 134 cubic inch (2.2 liter) 4-cylinder, water cooled, direct injected engine • Lima-Mac 460V AC, 15kW generator • 460V Receptacle CEE-17, 460 VAC, 32 amps, Carrier P/N 22-01561-00 • Built to ISO 9001-2008 Quality Standards
