Steel intermodal container SB47174

transportflat rack

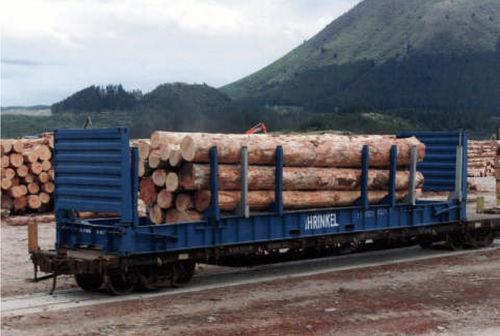

The Type 17 is called the Log-Rac, being a purpose built ruggedized flatrack for the carriage of logs, pipes and timber. These are containerized within the well formed in the base and adjustable stanchions along each side. The stanchions can be folded down across the well to form a flat level superstructure to support general cargo. This patented flatrack has gooseneck tunnel at each end and could be adapted to carry flexible tanks within the base for water and fuel All important spare parts are available as they have been for more than 20 years. STANDARD FEATURES • Ship logs, pipes and steel bars securely • Ship logs forest to door • Eliminate 90% of handling & damage • Move logs safely • Spare parts available worldwide • Available for leasing • Four units fold into 8’ 6” • 7 high stacking at 30,480 Kgs • TYPICAL LASHINGS AND INTERFACING • Stanchions: 8 per side adjustable • Lashing bars: 6 per side, 2 per end • Twistlocks: 1 piece forged lift element, 30 degree stainless steel detent • Header locks: 2 per end semi-automatic • Corner locking: hammer locked conical pin • Counterbalancing: leaf spring • Approvals: ABS, LRS, BV, UIC, CSC, TCT • Fork pockets: 115 x 360mm
