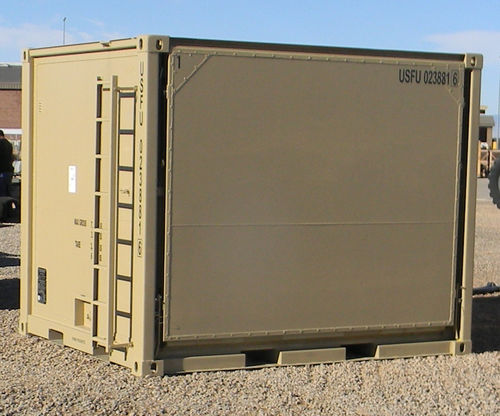

Modular building SB841.0.3S1 series

containerizedfor logistics

Bicon container with walls that expand to provide triple the internal space. (2) personnel doors, one on each end. STANDARD FEATURES • 10’ x 8’ x 8’ ISO Container • Basic container is designed to comply with ISO/TC-104 test requirements • Container walls expand to provide additional internal space • (4) corner castings, ISO668 & ISO1161 compliant • (2) each, standard ISO1496-2 forklift pockets • Designed and constructed to allow handling in accordance to ISO3874 • (2) Personnel door, one per end • CFC-Free polyurethane foam insulation. • Zinc rich epoxy primer, acrylic high build epoxy top coat - Color per customer specification • Center box length dimensions: Length: 9’ 2”/2,790, Height: 7’ 1 7 /16”/2,170, Width: 6 ‘ 11 7/8”/2,130 • Curb side box dimensions: Length: 8' 1 1/4"/2,470, Height: 6’ 11”/2,110, Width: 6’ 10 11/16”/2,100 • Road side box dimensions: Length: 8’ 1 1/4”/2,470, Height: 6’ 11”/2,110, Width: 6’ 10 11/16”/2,100
