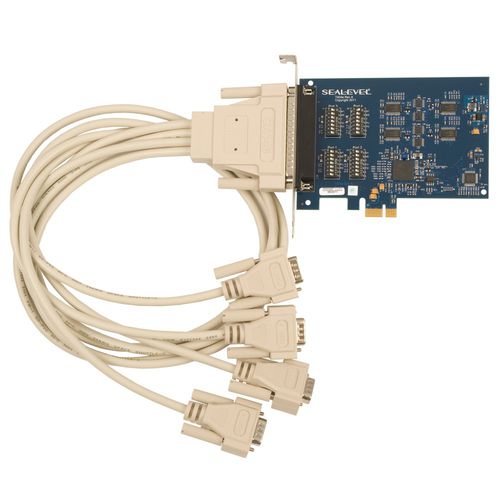

PCI Express interface card 7404e serialRS-485industrial
Add to favorites
Compare this product
Characteristics
- Bus standard
- PCI Express
- Bus
- serial, RS-485
- Applications
- industrial
Description
The 7404e PCI Express serial interface provides four multifunction serial ports, each individually field-configurable for RS-232, RS-422, or RS-485. Each serial port utilizes a 16C954 UART with 128-byte Tx/Rx FIFOs that enables data rates to 921.6K bps for reliable high-speed communications in data intensive applications. This high-performance UART includes 9-bit framing support and is register compatible with legacy 16550 software applications. In addition, the board derives a 62.5 MHz clock from the PCI Express link. This ultra high speed clock is divided by a flexible 8-bit clock prescalar with 1/8 steps to provide support for the widest range of standard and non-standard baud rates.
Catalogs
No catalogs are available for this product.
See all of Sealevel Systems‘s catalogs
