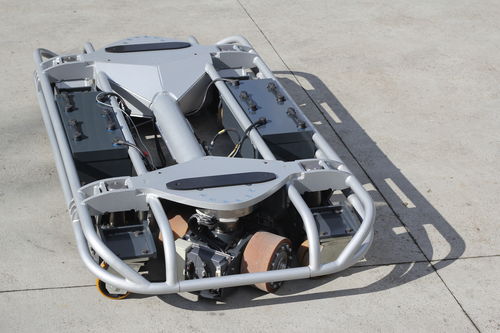

Electric self-propelled trailer 2

Seaqx transporters will redefine the plant of the next generation. A next generation plant is a flexible plant where the production/assembly-line can be altered in output or organization. Seaqx new flagship is an answer to this challenge. Its new heavy-load in-plant transporter, capacity ranging from 20T to 100T or more, is extremely compact, requires almost no maintenance, is safe and flexible. Seaqx new flagship is based on a newly developed traction technology, a 6T-steerable traction drive with integrated (water-hydraulic) lifting system. The Seaqx drives are the first in the world who have an unlimited steering angle. It allows transporters to drive forward, backward, turning at the point and even sideway or crab. The electrical traction drives are maintenance-free and deliver enough traction power to guarantee comfortable, secure and safe driving. Based on these new drives, tailor made transporters can be designed and produced. The in-plant SPMT can be a pallet-transporter, a flat-bed transporter which is directly loaded by a crane, die or mould transporters with exchange system, etc. Depending of the required capacity, a number of traction drives will be mounted under the frame. The battery driven transporter can be used in in-plant environments. Its driving system is fully electrical, powerful and maintenance free. Its integrated lifting and suspension system is water-hydraulic and thus not contain any additives (tap water). Advantages : 20% less components 50% lower deck-height (only 320mm) 30% more traction force (2x 2T) 40% faster (50m/min) 20% cheaper .than comparable SPMT's
