Rugged portable digital micro ohmmeter with temperature compensation
- Full cooling curve facilities built in
- Real time graphical plotting
- Storage of 1,000 tests downloadable via USB or RS232

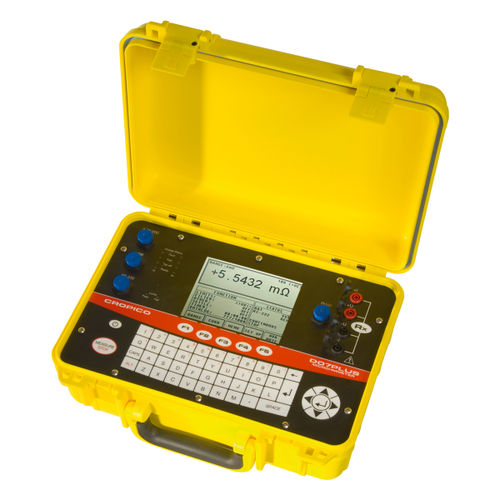

The DO7Plus is a 10A micro ohmmeter, suitable for applications within aerospace, utilities, cable or machine manufacturers or where a cooling curve is required to plot peak resistance. Sealed in an IP67 case (when closed or IP53, lid open) it is ruggedly constructed to ensure durability.
This micro ohmmeter has a display length of 60,000 counts and auto averaging of forward and reverse measurement removes thermal emf differences.
The DO7Plus micro ohmmeter has built in rechargeable batteries which will provide up to 1 hour of continuous use at 10A, and up to 20 hours at all other ranges.
Technical specification
Measurement4 terminal Kelvin / Thompson principle eliminates errors due to lead resistance
Display60,000 count + sign LCD graphics panel with backlight select display value of °C or °F
Ranges7 resistance ranges
Terminals4mm safety sockets
Working temperature0 deg C to 40 deg C
Storage Temperature-20 deg C to +50 deg C
SafetyConforms to EN 61010-1:2001 50V Cat 3
Dimensions and weight358mm X 269mm X 155mm
Mass<5Kg (instrument only)
