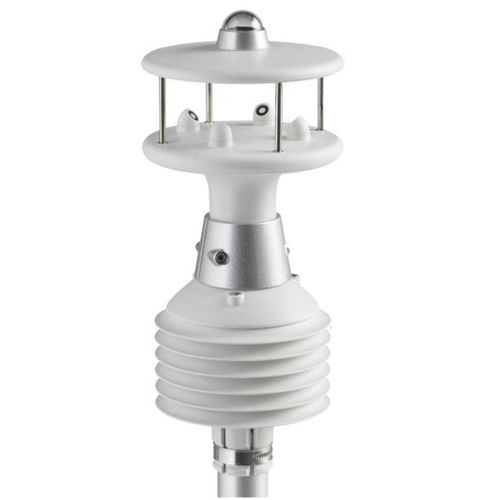

Ultrasonic wind sensor MulitMET

dust-proofwaterproofdigital

- Compact rugged wind sensor with a maximum measuring range of 60m/s. - Analog and digital output for wind speed and wind direction - Optional measurements: relative humidity, temperature, pressure, solar radiation - Wind gust (SDI12 and Modbus) - SDI12/RS422/RS485/Modbus output for all parameters (define at ordering) The MultiMet is a rugged compact wind sensor that can be supplied in many variants. Simply as wind speed and wind direction only or combined with other measurements in 1 compact housing. It can be ordered with many variations in outputs: 2 analog outputs (wind speed and wind direction as 4-20mA or 0-1V) and for all parameters (including wind speed and wind direction) the choice of SDI12/ RS485/RS422/Modbus-RTU output. We supply the MuliMet standard with SDI12 communication (for all parameters including wind speed and wind direction) and 2 analog outputs 0-1V (for wind speed and wind direction). Other settings can be defined when ordering. High performance, no moving parts. Compact combined ultrasonic wind sensor to be mounted directly on a 40mm mast. The electrical connection is protected inside the mast and cannot be influenced by any weather conditions. The MultiMet has a low power consumption and is ideal to be used in solar powered installations. No moving parts: minimal maintenance. Flexible The MultiMet sensors can be individually configured to fit perfectly in all situations, combined with local data logging or combined with a logger/ modem configuration for remote data transfer. It can be used stand alone on solar power as AWS when combining it with the logger/ modem combination.
