AC motor YR seriesinduction> 1000 VIP55
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- induction
- Voltage
- > 1000 V
- Protection class
- IP55, IP54, IP44, IP23
- Configuration
- wound rotor
- Number of poles
- multipole
- Power
Max.: 18,000 kW
(24,473.181 hp)Min.: 220 kW
(299.117 hp)
Description

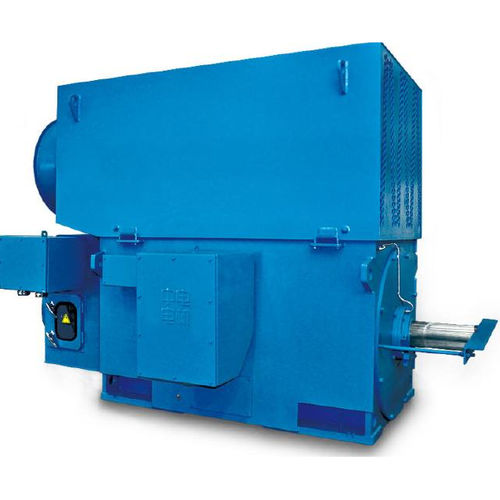

Wound rotor induction motor
Type： - YR, YRKS, YRKK
Frame： - H355-H1120
Power： - 220～18000Kw
Poles： - 2-24
Voltage： - 600～13800V
Frequency： - 50HZ, 60HZ
Protection degree： - IP23、IP44、IP54、IP55
Cooling type： - IC01，IC611，IC616，IC81W, IC86W
