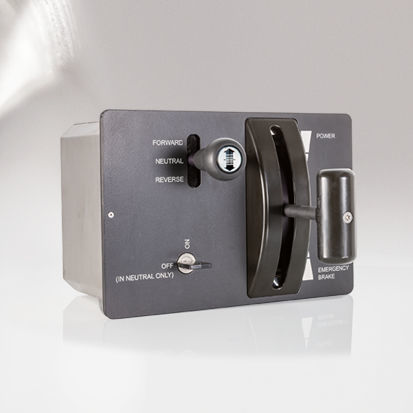

Control unit MMC

Train master controllers control traction speed, braking force, and travelling direction. They must be easy to integrate and ensure conductor comfort and safety. Sécheron BSK, MMC, and foot controller lines meet the vast majority of tramway, Light Rail Vehicle (LRV), and locomotive master controller needs. Traction/brake handle motion with notching or stepless positions (combination also possible). Traction/brake handle position transmitted through potential free contacts or analog digital angle converter (combination also possible). Analog digital angle converter with an angle range of 264°. Optional CAN bus interface for version with digital angle converter. Dead man function by pushing or rotating the traction/brake handle. Travelling direction handle position transmitted through potential free contacts. Key lock master switch position transmitted through potential free or change-over switches. Low voltage interface Harting connector, type modular DDD. Low voltage SUB-D additional connector for optional CAN bus. Customized front plate based on the selected functions. Low depth below the desk with 154 mm. Control voltage. Suitable for ambient temperature – 40°C to +70°C. Reference standards: IEC 61373; EN 501455, EN 50121-3.
