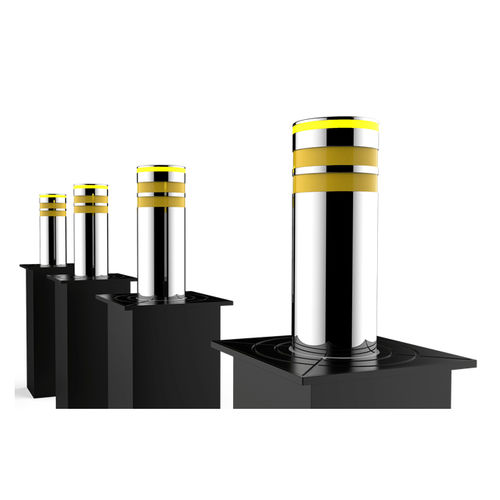

Automatic retractable bollard SST-N6010

hydraulicsteel

System：hydraulic-electric driven system Max passing pressure：Can pass 120 tons of container trucks Voltage：AC220V 50Hz Integrated /AC380V Split Power(w)：300W/350W Integrated/3.75KW Split Up time：≤3-4S Adjustable Down time：≤3-4S Adjustable Working temperature：-35℃~75℃ Storage Environment ：-10℃~65℃, Water-proof Damp-proof, Dust-proof. Material ：304 stainless steel Standard Rising height：600mm, max can be 1000mm Standard Thickness：6 (8、10、12、15、30mm optional）. Standard Diameter：219( 168、、273mm optional） Casing size：430*430*1130mm/430*430*900mm Structure of security bollards：With load-bearing reinforced steel beam, anti-collision steel column, 4 strengthful navigation rods Integrated mechanism ：stroke 600mm, outer diameter 60mm, rod diameter:16mm. 6k Mirror tube With LED on top （Acrylic light circle） Reflective tapes: 2 strips Linkage-control interface In case of a power outage, the automatic bollards can be automatically lowered by emergency cable with back up battery IP rate：IP68 Weight:150±KG/pcs. Control box: 15kg In rising and falling, the reversible operation is available The device running noise≤60decibel Waterproof integrated hydraulic pump unit built-in The hydraulic cylinder is double sealed to ensure a waterproof rating The hydraulic mechanism comes with a hydraulic lock PLC programming control system Solenoid valve voltage 24V Remote control distance 50M-100M（Based on the environment） The control box displays text adjustable（Up，Down，Action，Time control adjustment, Company information show） Text display with Chinese and English bilingual PLC built-in encryption system APP and PC remote control (optional)
