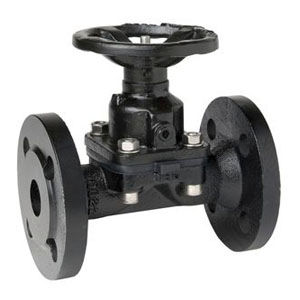

Diaphragm valve 985 , 987 serieswith handwheelfor controlfor water
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- with handwheel
- Function
- for control
- Media
- for water
- Body
- flange
- Number of channels
- 2/2-way
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)- Temperature
95 °C, 150 °C
(203 °F, 302 °F)- Flow rate
Max.: 910 m³/h
(32,136.35 ft³/h)Min.: 7 m³/h
(247.2 ft³/h)
Description
Type 987 is a manually operated valve. This valve with non rising handwheel has a robust design which allows higher temperatures applications. It eliminates water hammer and allows the flow in both direction. This valve is complete with position indicator. It is unaffected by any contaminated media. It is a maintenance-free non-corrosive actuator. The working temperature is at maximum of 95°C or 200°F depending on diaphragm and body material.
