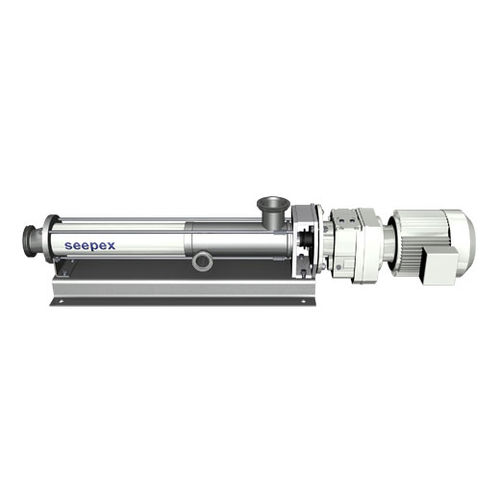

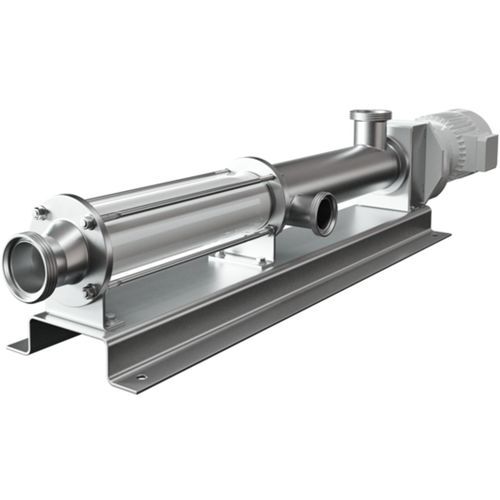

Food product pump BCSO series

electricprogressive cavitysanitary

Open aseptic fork joint made up of only two components Open aseptic pin joint, designed for high pressures and conveying capacities Manufactured according to the 3A-Sanitary-Standard regulations and the EHEDG directives Conveying capacities: 30 l/h - 130 m³/h | 0.132 USGPM - 572 USGPM Pressures: up to 24 bar | 360 PSI The pumps of the BCSO range are equipped with open aseptic joints that can be cleaned without leaving residues through CIP continuous cleaning. They meet highest demands on hygienic cleanliness and on corrosion and wear resistance. The open fork joint features an especially shaped coupling rod and the rotor or plug-in shaft head. Apart from that, it is made up of only two components – the bolt and the circlip. For higher pressures and conveying capacities, seepex additionally offers a newly developed, open pin joint. Service work can be performed easily and rapidly without the need for special tools. Just like all the pumps of the BCSO range, these joint designs comply with the regulations of the 3A-Sanitary Standards of the USA and the EHEDG directives.
