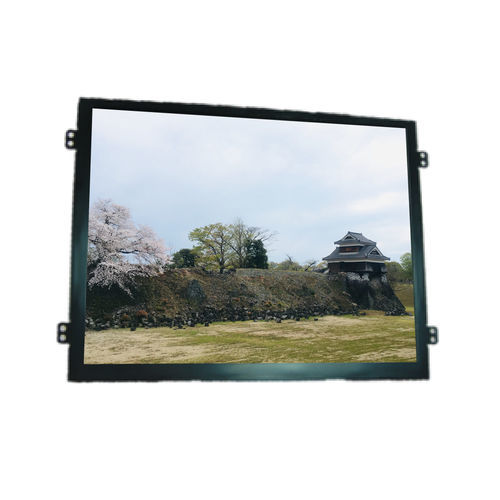

TFT-LCD monitor SER104C-Ltouch screenLED backlight10.4"
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, touch screen, LED backlight
- Display size
- 10.4"
- Resolution
- 1024 x 768
- Mounting
- open-frame
- Applications
- industrial, for industrial machines, for IoT applications, for vehicles, versatile, multifunction, for agricultural applications, high-temperature
- Other characteristics
- high-brightness, VGA, wide temperature range, Windows 7, embedded, high-performance, highly reliable, customizable, heat-resistant, wide viewing angle
Description
✩Model No. SER104C-L
✩✩High Resolution Open-Frame Type 10.4” VGA TFT LCD Touch Module
Feature:
▶High Brightness 500 nits
▶High Contrast 500
▶Ultra High Contrast 1200:1
▶High Resolution 1024 x 768 pixels
▶4:3 Aspect Ratio
▶LED Backlight With Lower Power Consumption
▶Fast Response Time (Ton+Toff average 25ms)
▶Wide viewing angle 176(H)/176(V)
▶Support VGA Resolution from 640x480~ 1920x1080 Pixels
▶LVDS Interface
▶One VGA Input/Two Video Inputs
▶Auto Dimmer
▶Auto Power On/Off Function for VGA Signal
▶Wider Operating Temperature -30~+80℃
▶Wider DC Input 9-36V
▶Multi-Languages OSD Design (English, German, Spanish, French, Italian)
Certificate
▶CE/FCC/E13/RoHS Compliance
TouchKit Driver
▶vista / 9X / Me / NT4.0 / 2000 / XP / CE.NET/CE 2.12/3.0/ Dos
▶Mac OS 9X / OS X(Intel CPU)
▶Linux Readme/ Mandriva / Mandrake / Red Hat / Fedora Core /
▶SuSE / Debian / (K)Ubuntu / Yellow Dog
Accessories
▶Users manual x 1
