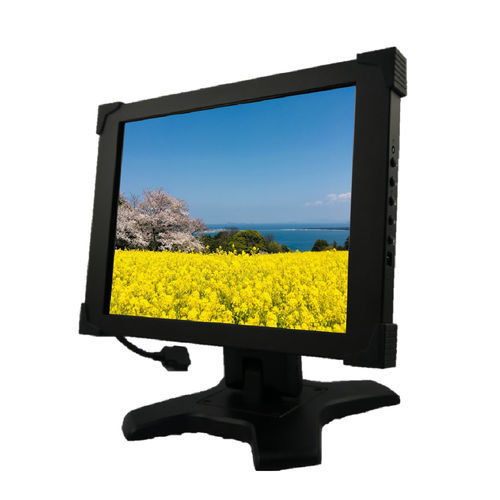

12.1" monitor SEF121TPC-LXH-PCTTFT-LCDprojected capacitive touchscreenmultitouch screen
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, projected capacitive touchscreen, multitouch screen, LED backlight
- Display size
- 12.1"
- Resolution
- 1024 x 768
- Mounting
- VESA mounting
- Applications
- industrial, for industrial machines, for IoT applications, for vehicles, outdoor, versatile, multifunction, for agricultural applications, high-temperature
- Other characteristics
- sunlight-readable, high-brightness, USB, VGA, wide temperature range, compact, heat-resistant, Windows 7, embedded, Windows 8, highly reliable, customizable, rugged
Description
✩Model No. SEF121TPC-LXH-PCT
✩✩Ultra Brightness 12.1” TFT LCD Multi-Touch Monitor with High Resolution
Feature:
▶Ultra Brightness 1000 nits, 4:3 Aspect Ratio, High Contrast 700
▶Support Resolution from 640x480 ~ 1920x1080 Pixels
▶High Resolution of Panel 1024 x 768 Pixels
▶Auto Reversing Function for Video 3
▶Industrial Application Panel with Long Product Life Cycle
▶One VGA Input/Two Audio Inputs/Three Video Inputs/USB Interface
▶Projected Capacitive Touch Screen (Non-Touch Function Is Available)
▶Auto Power On/ Off Function
▶LED Backlight with Low Power Consumption
▶Auto-Dimming Function
▶Response Time (Tr+Tf average 35 ms)
▶VESA Stand Can Be Swiveled with 180°
▶Detachable Stand for Wall-Mounting Application
▶Metal-Enclosure with Protection Edge Design
▶Multi-Language OSD Design (English/Italian/Spanish/Germany/French)
Certificate
▶CE/FCC/E13/ECE R118, RoHS Compliance
TouchKit Driver
▶Windows 10/8/7
Accessories
▶VESA Stand x 1, AC/DC Switching Power Supply x 1 or Car Cigarette Lighter Adapter x 1, All-In-One Cable 2.5M x 1 (Option: Custom Length), Remote Controller x 1, User Manual x 1
Catalogs
SEF121TPC-LXH-PCT Spec
1 Pages
