Data acquisition system with data logger DAS240

temperaturevoltagebenchtop

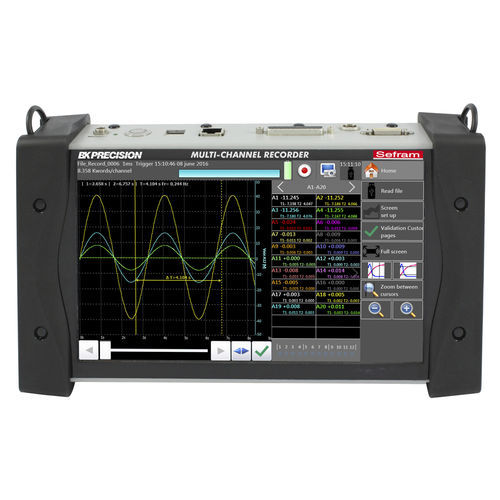

The Data Acquisition Solution DAS240 is the right answer for your recording needs. With its adjustable channel configuration up to 200 channels and 12 logical inputs the DAS240 has been designed to measure all parameters you can find in a industrial process: voltage measurements, measurements on sensors (0-10V), temperature measurements (thermocouples, Pt100-1000), current measurements (with optional shunt), resistance measurements, pulse counter, frequency. Measurement results can be viewed graphically and numerically on a 10-inch color touch screen and saved to internal solid-state memory or transferred to an external USB memory stick. • 20 to 200 analogue channels • Input : voltage, thermocouple, Pt100-1000, current (with optional adapter), resistance • Voltage: from 1mV to 200V (±100V) • Temperature: thermocouples (all types), Pt100-1000 (2 or 3 wires) • 16 Bit vertical resolution • Max sampling rate: 1ms (1kHz) • 12 logical channels • 4 alarms (output) • 4 logical function input with counter & frequencymeter capability • 10" TFT panoramic touch screen • Internal hard drive : 32 GB • Interfaces: 2xUSB, Ethernet, Wifi (option) • Lithium-ion battery (factory option) : 15h autonomy • Labview driver available • MODBUS TCP (slave): Click here to get more details about this function • Safety: IEC61010 CAT I 100V • Application note: Browse our application notes for Data Acquisition Solutions • Easy to learn and use : Quickstart guide
