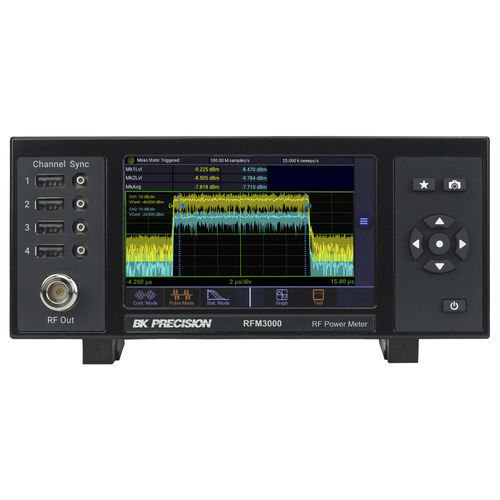

RF power meter RFM3004GPIB

multimeterpeak powerbenchtop

The RFM3000 Series of meters work in combination with B&K Precision's RFP3000 Series of USB RF Peak Power Sensors to extend their capabilities and eliminate the need for a remote computer. This benchtop solution supports capturing, displaying, and analyzing peak and average RF power in both the time and statistical domains through an intuitive, multi-touch touchscreen display. Two on-screen markers can be dragged over a waveform for greater measurement details. A selection of useful trigger options and channel synchronization settings provide the perfect tool set for working with multiple channel measurements. • Compatible with RFP3000 Series USB RF Peak Power Sensors • Capture/display/analyze peak and average power • Independent or synchronous multi-channel measurements (up to 4 channels) • Trigger synchronization • Test source for sensor verification • Display 16 common power measurements • Ethernet:10/100/1000 BaseT; HiSLIP • Supports SCPI-1999.0 • HDMI output for mirror display • Sensors can be used as standalone instruments • GPIB (factory option)
