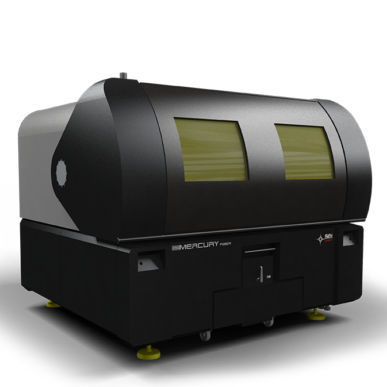

Fiber laser cutting machine Mercury fiberfor metalsheet metal3-axis
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for metal
- Product handled
- sheet metal
- Configuration
- 3-axis
- Other characteristics
- high-precision, high-performance, three-dimensional, with CCD camera
- X travel
1,200 mm, 1,250 mm, 1,500 mm, 2,000 mm
(47.24 in, 49.21 in, 59.06 in, 78.74 in)- Y travel
800 mm, 1,500 mm, 2,000 mm, 3,000 mm, 4,000 mm
(31.5 in, 59.06 in, 78.74 in, 118.11 in, 157.48 in)- Z travel
60 mm
(2 in)- Laser power
Min.: 1,000 W
Max.: 5,000 W
- Repeatability
0.01 mm
(0.0004 in)- Overall length
2,110 mm, 3,766 mm, 4,100 mm, 5,010 mm, 5,600 mm
(83 in, 148 in, 161 in, 197 in, 220 in)- Overall width
2,360 mm, 2,428 mm, 2,748 mm, 3,368 mm
(93 in, 96 in, 108 in, 133 in)- Height
2,100 mm, 2,226 mm
(83 in, 88 in)
Description
• Processes: cutting
• Processable materials: metals and thin alloys
• Sectors: can be perfectly integrated into any production environment
• High accuracy of cutting profile
• High speed and acceleration
• Equipped with linear motors
• Kit for register cutting with print marker recognition
• Low operating costs, thanks to lower electricity consumption, reduced maintenance and long life of the laser source
• System with Class 1 safety rating to guarantee a safe and clean working environment
• Automatic telescopic opening and closing over entire operational area
• Easy access to the work area thanks to inspection window with protective glass on the front of the machine
• Work surface with fume and dust extraction
• ICARO proprietary software
• Industry 4.0 Ready: full digital workflow integration
VIDEO
Catalogs
Mercury Fiber - Brochure
28 Pages
