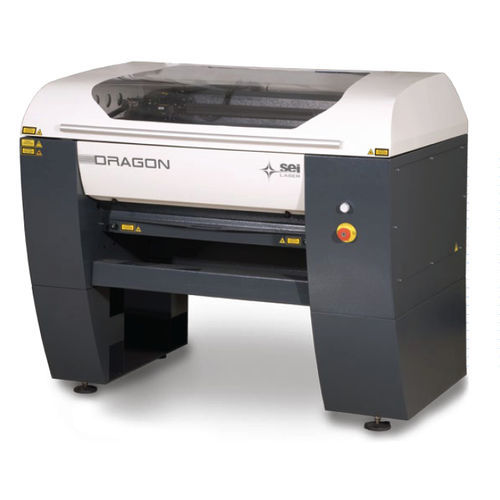

CO2 laser cutting machine Dragon textilefor composite materialsfor metal
Add to favorites
Compare this product
Characteristics
- Technology
- CO2 laser
- Material
- for metal, for plastics, for wood, textile, for leather, for marble, for composite materials, for glass
- Control type
- CNC
- Associated function
- engraving, marking
- Configuration
- compact, 2-axis
- X travel
700 mm
(27.56 in)- Y travel
500 mm
(19.69 in)- Cutting speed
2 m/s
(6.562 ft/s)- Laser power
Max.: 150 W
Min.: 30 W
- Acceleration
28 m/s²
(92 ft/s²)- Overall length
1,240 mm
(49 in)- Overall width
990 mm
(39 in)- Height
1,700 mm
(67 in)- Weight
250 kg
(551.16 lb)
Description
Small sized systems featuring cutting edge technology providing flexible operation with high
performances and safety.
■ The Dragon structure is composed of a coated electro welded metal sheet mono-block.
■ Performances: up to 2000mm/s speed with 2 G acceleration.
■ X-Y motorized axes with micro-brushless motors and belt transmission.
■ Manually adjustable cutting head with interchangeable focal unit and nozzle.
■ Aluminum grid work table with supports and prearrangement for suction.
■ Rear and front opening for processing long slab material.
■ Icaro software (cam) stamps and bas reliefs are also possible via a raster mode with 0-255 gray scales.
