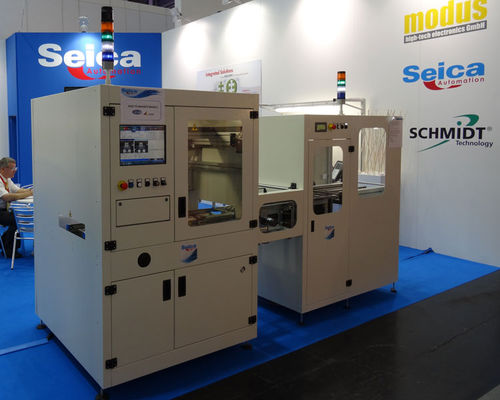

Automatic label applicator MODULO-LA-1HD

for PCBtop

he LABEL module is designed to print and apply a large variety of labels on bare PCB’s or on top of components of assembled PCBs. The position and content (text, number, etc…) of the labels is easily programmable via windows based software. The system uses a brushless motor to apply labels in the desired position and angle. • The system can print and apply a label on a PCB or components. • Recipe can program positions and text for labels. • Cartesian robot will take the label and put on PCB. • Optional Barcode or Camera can be applied to Printer or placing Head. • Multiple allocation can be permitted. • Software interface for CAB / BRADY label printer (Codesoft™) included. • FIS not included (Factory Interface Software). FUNCTIONAL DESCRIPTION • Label Printer and Placer. • Label Placement rotation 0°-180° • Transport direction left to right • Tower light display for machine status • User push button START STOP RESET • External Flat monitor and Keyboard • SMEMA interface • Oparating area 500×400 mm • Operating System Windows 7
