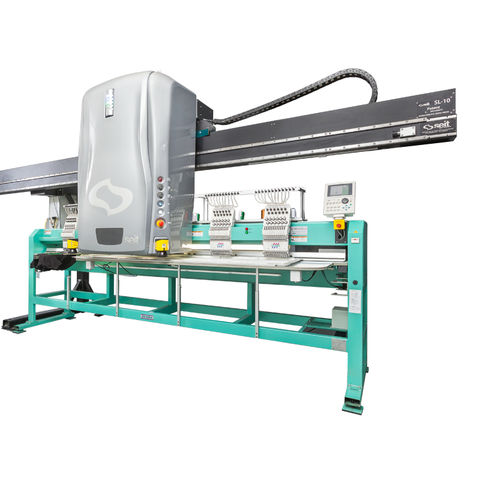

Laser marking and engraving machine SL-10

fabricautomatic

The laser bridge SL10is an advanced system for cutting and engraving that utilizes the galvanome-tric technology, developed in over 15 years of experience. It allows you to run applications, etchings and cuts on a wide range of fabrics and materials, integrating perfectly with your existing embroidery machines. You will be amazed by the quality of the results and the speed of execution of our laser. TECHNICAL DATA LASER BRIDGE SL10 Laser Tube : CO2 sealed Galvo motors max speed : 12.000mm/sec Available power : 60W/80W/100W/100W Pulsati/150W Pulsed /250W Pulsed Available working areas : 500x500mm / 360x360mm / 180x180mm Cooling : By water on scan head, laser and power supply Trolley moving speed : Up to 2.500mm/sec X axis positioning precision : 0,01mm Testing table dimension : 700x600mm Required voltage : 380V + N + P.E.
