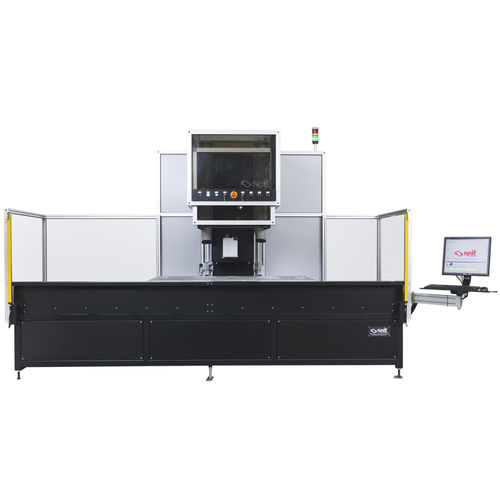

Engraving cutting machine Spider Jumbolasertextilefor leather
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- textile, for leather
- Associated function
- engraving
- Applications
- shoe industry
- Configuration
- 3-axis
- Other characteristics
- with water cooling
- Laser power
100 W, 250 W, 400 W
Description
Laser power up to 800watt and a large working area of 1500x1000mm are the main characteristics of the Spider-Jumbo, suitable for industrial production of engraving, ablation and cutting. The displacement of the working bench, done through 4 controlled axes, is combined with the 3-axis scan head to get results otherwise unreachable.
TECHNICAL DATA SPIDER JUMBO
Laser tube : CO2 sealed
Galvo motors max speed : 12.000mm/sec
Available power : 100W/100W Pulsed/250W Pulsed/400W
Available working areas : 600x600mm / 500x500mm/ 360x360mm / 180x180mm
Cooling : By water on scan head, laser and power supply
Available working areas : 1500x1000mm
Max height of workable object : 375mm su area 600x600mm
475mm su area 500x500mm
600mm su area 360x360mm
775mm su area 180x180mm
Max consumption : 5,5kW/h per 100W (220V)
7,5kW/h per 250W (380V)
14,5kW/h per 400W (3800V)
