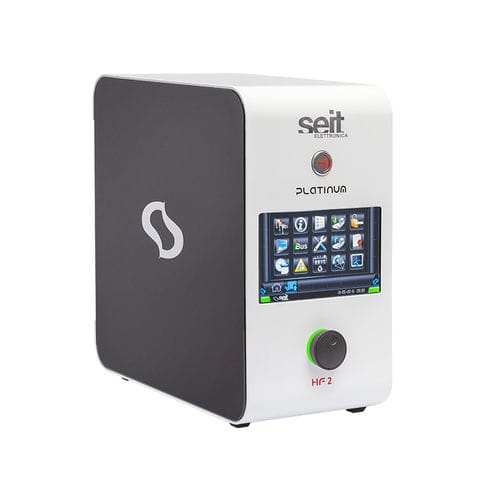

Heat treatment induction heater Platinum HF2weldingbrazingshrink fit
Add to favorites
Compare this product
Characteristics
- Use
- for heat treatment, welding, brazing, shrink fit, for forging, for nanoparticle research
- Other characteristics
- mobile, high-frequency, with two induction coils, automatic temperature mode, automatic temperature holding
- Power
Max.: 2,500 W
Min.: 200 W
- Frequency
Max.: 600 kHz
Min.: 200 kHz
Description
IMPROVE YOUR HEATING PROCESS
Platinum HF2 is a high frequency induction generator, suitable for the electronics, healthcare and eyewear industries, and can be easily integrated into manual and automatic production lines.
CHARACTERISTIC
Model: Platinum HF2
Output power (kW): 2.5kW
Reactive power: 46 kvar
Duty Cycle: 50%
Frequency range: 200 kHz -600 kHz
Output power regulation: 10% - 100%
Power supply: 230V - 1ph - 50/60Hz
Cooling: H2O demineralized
FEATURES
- Touch-screen display 7”
- Digital control of all functions
- Creation and saving of multistep programs
- Heating profiles based on temperature and / or power
- USB connection
- Multilingual user interface
- Real-time diagnostic of the machine state
VIDEO
Catalogs
Platinum HF2
6 Pages
