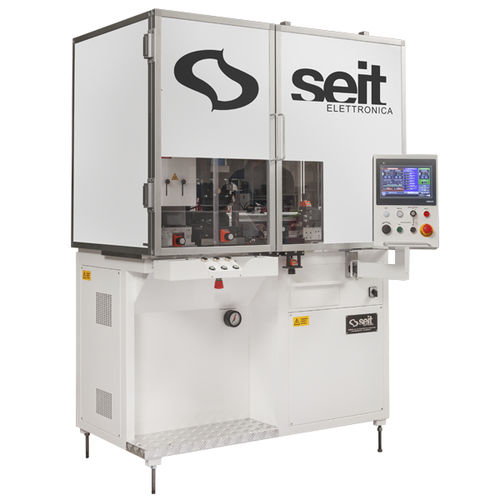

Automatic core shooting machine

for the eyewear sector

The core shooting is probably one of the most delicate processes in the eye-wear production. Innovations on this machine assist operators thanks to new electronics, easy but incredibly efficient, that helps reduction of set up and mould change time up to 50%. TECHNICAL DATA OF CORE SHOOTING Three phase power source - 220-380V, 50-60Hz Absorbed power - 3,2 KVA Used power - 1,5 KW Double pressure cylinder - 2.950 Kg of power Air entry pressure - 6-8 bar Cooling system - forced water circulation Dimensions with safety barriers closed - H x L x D (mm): 2030 x 1400 x1250 Weight(Kg) - 600 Dimensions with safety barriers open - H x L x D (mm): 2030 x 1660 x 1860
