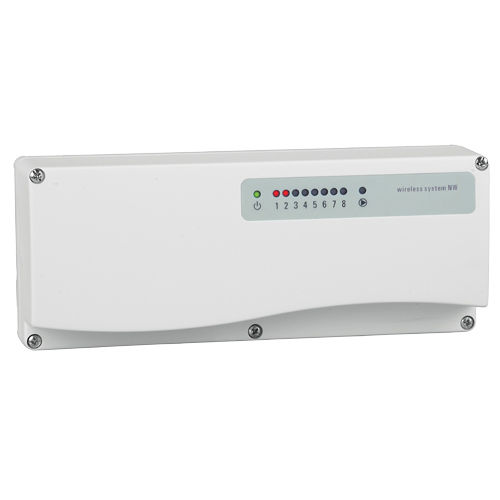

Activation relay module DLP841M

for actuators

8 ZONE RELAY MODULE + PUMP OUTPUT 230V The DLP 841 M is a 8 zone relay module for activation of electro-thermal actuators or other types in wireless heating or cooling systems for homes or offices. It features 8 independent channels which in turn can be linked up to a wireless thermostat or chronostat. The module also features an auxiliary relay to control a circulator pump or a boiler. Every single thermostat periodically transmits a radio command containing room temperature and setpoint. Commands are then received by the DAP F84 active antenna, which sends through a data cable the information to the DLP 841 M module, which will perform the regulation and will turn on or off the actuator relay output linked to the thermostat. The module features a Heating/Cooling input and a Global Standby input. Actuators are 230V~ supplied or can be supplied from an auxiliary voltage (i.e. 24V~), both NC normally closed and NO normally open actuators can be driven. Up to 10 DLP 841 M modules can be connected in chain to form a multichannel system with just one antenna. TECHNICAL FEATURES Power supply 230V~ -15%+10% 50Hz Power absorption 4W Relay rating 8x3A @ 250V~ cosfi=1 Maximun total load current 8A Circulator relay rating 3A @ 250V~ cosfi=1 SPST Protection grade IP30 Dimensions H100 W245 D60mm Class Reg.2013/811/EC IV = 2,0%
