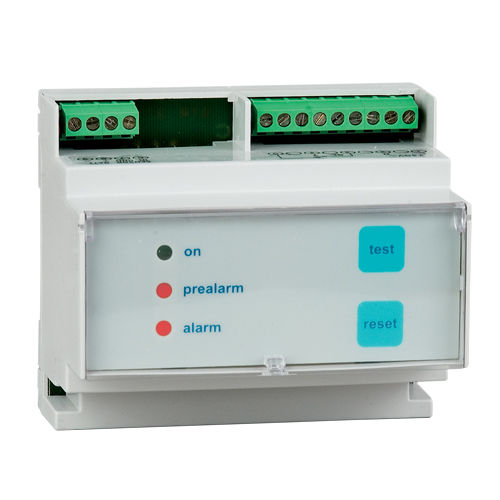

Gas leak sensor gas detection control unit RGI000LBXD for DIN rail mountingmulti-channel
Add to favorites
Compare this product
Characteristics
- Options
- for gas leak sensors, for DIN rail mounting, multi-channel
Description
10 In 1 Out control unit for gas leakage sensors with alarm buzzer; input for up to 10 remote 230V~ powered sensors. Reset and test pushbuttons and acoustic alarm. For non-classified ATEX zones.
TECHNICAL FEATURES
Power supply 230V~ ±10% 50Hz
Battery 12V ±10%
Output (relay) 5(1)A @ 250V~ SPDT
Indicators: active/prealarm/alarm Green/red/red LED
Delay on e.v. relay >20 sec.
Button 1 Test
Button 2 Reset
Case 6 modules for DIN-rail
Dimensions H90 W105 D70mm
Degree of protection IP54
