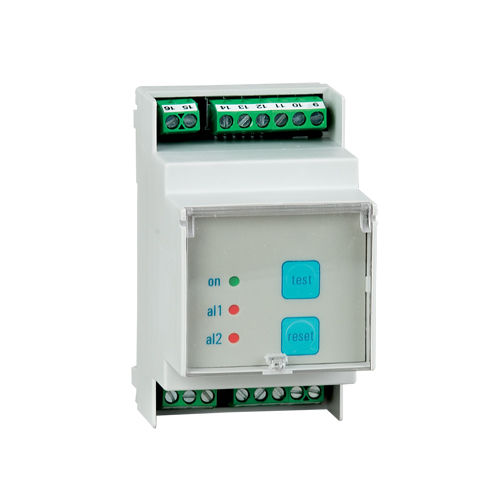

Gas leak sensor gas detection control unit RGI000MBX2 for DIN rail mountingmulti-channel
Add to favorites
Compare this product
Characteristics
- Options
- for gas leak sensors, for DIN rail mounting, multi-channel
Description
DIN rail control unit for gas leakage sensors in 3 module, with two relay outputs, inputs for 2 remote sensors and for back-up battery (ACCSGB12). Test and reset buttons. For non-classified ATEX zones.
TECHNICAL FEATURES
Power supply 230V~ -15/+10% 50Hz
Output 1 (relay x e.v.) 4(2)A @ 250V~ SPDT
Output 2 (relay x alarm) 4(2)A @ 250V~ SPST
Indicators: active/alarm1/alarm2 Green/red/red LED
Delay on e.v. relay ~15 sec.
Push buttons Test/reset
Case 3 modules for DIN-rail
Dimensions H96 W53 D73mm
Protection grade IP30
