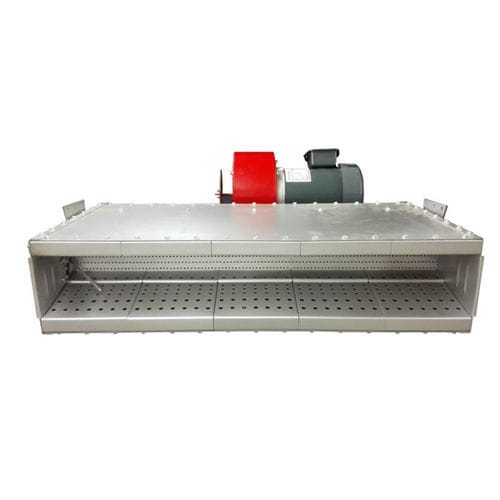

Chamber burner PH

gasdirect firedair heating

Air heating burners that direct combustion air across distribution air foils to heat fresh or recirculated air in ovens, air ducts, and other applications. PH Package Burners are air heating burners that direct combustion air across distribution air foils to heat fresh or recirculated air in ovens, air ducts, and other applications. Standard and customizable packages offer compact, pre-piped, pre-wired, prepackaged burners ready to fire 500,000 – 9 MM Btu/hr. Packages can include burner, blower (if necessary), fuel control, gas train, and control panel. Higher thermal capacities are available with special packages and custom burner configurations. Features and Benefits A versatile package burner for a wide breadth of applications to meet heat performance requirements of numerous applications and processes with multiple configurations available Up to 40:1 turndown for better process temperature uniformity and for a wide range of firing rates to eliminate unnecessary burner shut-down and untimely restarts 100% tested before leaving the factory ensuring superior performance Operating Principles Wide Range of Air Heat Applications, One Burner Typical applications include fresh or recirculated, low temperature (up to 1,200°F) air heating applications for industrial ovens & dryers and industrial heating. Industrial Dryers Air Replacement Systems Drying and Curing Rooms Industrial Spray Booths Air Handling Units
