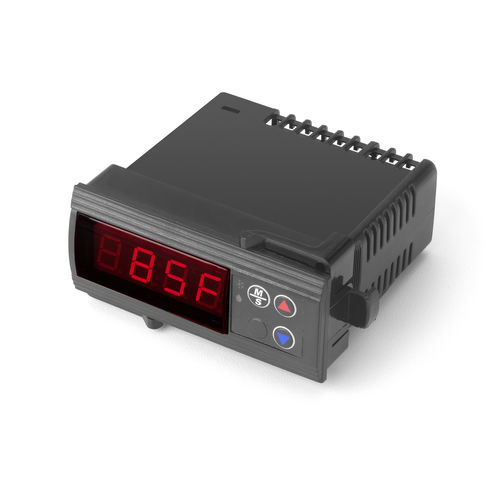

Digital temperature controller 3699 SeriesPIDheatingcooling
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Type
- PID
- Use
- heating, cooling
- Maximum temperature
Max.: 1,100 °C
(2,012 °F)Min.: -40 °C
(-40 °F)
Description
Description
Flexible ON/OFF, PID controller for complex applications.
115/230/12/24VAC Power Supply, two 10A outputs, 2 inputs and more
UL Approved - E230832
Specifications
Features:
High memory MCU for complex applications
Support of multiple power inputs
Support of thermocouple or thermistors
Applications:
Freezers
Refrigerators
Ovens
Cooking equipment
Operation Modes:
ON/OFF with defrost
PID control (PWM)
Timer
Input Power:
12/24 VDC/VAC, 115/230VAC factory set
First Input Options:
NTC Thermistor input (-40°F to 400°F)
Thermocouple E (60°F to 1562°F)
Thermocouple J (60°F to 1364°F)
Thermocouple K (60°F to 2012°F)
Second Input Options:
NTC Thermistors Input (-40°F to 400°F)
External switch input
Outputs:
Output 1: 10A,3A relay or 12/24VDC
Output 2: 3A relay, 12/24VDC or Buzzer
Output 3: 12/24 VDC
User Interface:
4 Pushbuttons
4 digit 7-segment display
Operating Temperature:
0°F to 131°F
Dimensions:
2.95"W X 1.30"H X 2.52"D
Cutout 2.75"W X 1.18"H
Approvals:
UL XAPX2 E230832; CAN/CSA XAPX8 E230832
Controller Type:
Standard Enclosed
