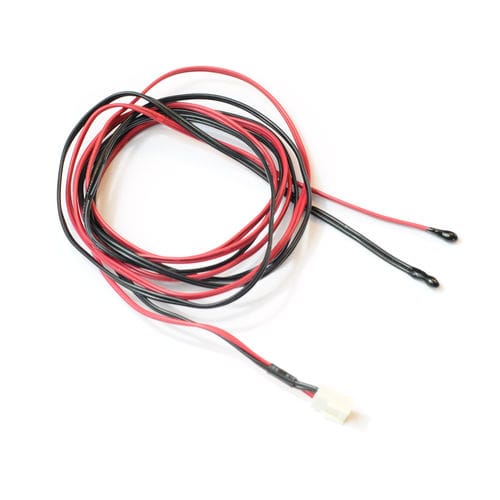

NTC thermistor CS Series

epoxy-encapsulated

Description CS series epoxy encapsulated thermistor probe assemblies can be customized to meet your application. Temperature ratings include -50°C to 150°C. We can provide a wide variety of base resistance and Beta options. Accuracies from ±0.05°C to ±1.0°C over temperature ranges, or tolerances of ±1.0% to 10.0% can be supplied. Lead wire options can be tailored to suit your application. RoHS Compliant. Click on the “Learn More” button for more information. FEATURES - Epoxy encapsulated thermistors with insulated leads - Application specific custom thermistors manufactured - Interchangeable or tolerance based assemblies - RoHS Compliant CS Series thermistors are designed to meet your specific application requirements. For “turn-key” solutions, their value-added features can significantly reduce your labor costs. Contact your applications engineering personnel for assistance to design, quote and manufacture your custom CS thermistor. SPECIFICATIONS Temperature rating/ CS Series probes using an recommended operating interchangeable IN Series or a tolerance ranges based PM Series thermistor may be intermittently cycled from -50°C to 150°C. Optimum stability is achieved when these thermistors are continuously operated at or below 125°C Resistance at 25°C See CS Series ordering map - page 9 R-T curves CS Series thermistors are available in all R-T curve materials. R-T tables are available on pages 24-25. Accuracies ±0.05°C, ±0.1°C, ±0.2°C, ±0.5°C ±1.0°C Accuracy temp ranges See CS Series ordering map - page 9 Tolerances at 25°C ±1%, ±2%, ±3%, ±5%, ±10% Dissipation constant Varies depending on the discrete series thermistor series used in the probe assembly
