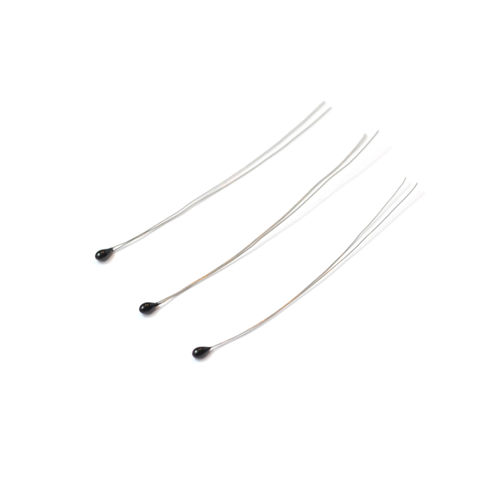

NTC thermistor IN Series

epoxy-encapsulated

Description IN series thermistors have epoxy encapsulated bead diameters of 0.095”, have an operating temperature range from -50°C to 150°C, are available in numerous base resistances and Betas, can be supplied with accuracies up to ±0.05°C over a variety of temperature ranges, and are available with #28 to #32 AWG un-insulated lead wire. RoHS Compliant. Below are some example part numbers with application specific probe housing, lead wire details, overall length, etc. These assemblies are typically RoHS compliant. IN-F010K-D314 NTC thermistor, 10K Ohm base resistance at 25°C, Beta of 3435K (25/85), accuracy of ±0.1°C over 0°C to 70°C, with 0.095” epoxy bead diameter, with #30 AWG tinned copper un-insulated leads, with an overall length of approximately 2.0”. IN-A010K-C314 NTC thermistor, 10K Ohm base resistance at 25°C, Beta of 3977K (25/85), accuracy of ±0.2°C over 0°C to 70°C, with 0.095” epoxy bead diameter, with #30 AWG tinned copper un-insulated leads, with an overall length of approximately 2.0”. For more customization options, please fill out our Custom Design Assistance form or contact us today! Specifications Custom Thermistors: For Custom IN Series Thermistors - contact Selco Standard Size: .095" (2.4mm) Lead Wire: 2" - 3" leads - other lengths available Tolerance at 25ºC: ±0.10ºC - ±1.00ºC Temperature Tolerance: To match your specification
