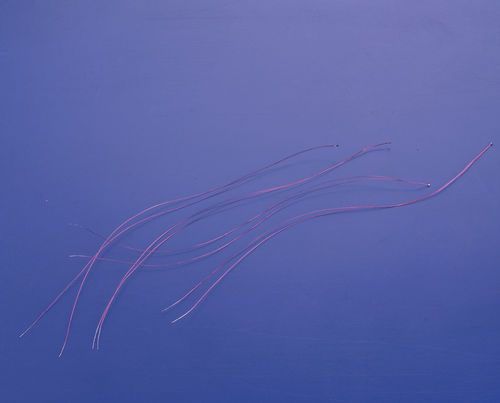

NTC thermistor LS Series

LS series thermistors have PVC probe housings as small as 0.078” x 0.375”, have an operating temperature range from -50°C to 150°C, are available in several common base resistances and Betas, can be supplied with accuracies up to ±0.1°C, and are available with #28 AWG to #30 AWG lead wire. RoHS Compliant. FEATURES - Interchangeable accuracies - Moisture coating optional - Quick Response - RoHS Compliant SPECIFICATIONS Temperature rating/ LS Series thermistors may be recommended operating intermittently cycled at temperatures ranges from -50°C to 150°C. Optimum stability is achieved when thermistors are operated at or below 125°C. Curves/Betas (25/85) LS Series is manufactured with A curve (3977K) or B curve (3942K). Accuracies ±0.1°C, ±0.2°C, ±0.5°C, ±1.0°C Accuracy temp range 0°C to 70°C Tolerances at 25°C ±1%, ±2%, ±3%, ±5% Dissipation constant 2.5 mW/°C in still air 13.0 mW/°C in stirred oil Thermal time constant Typically 15 seconds in still air Typically 1.25 seconds in stirred oil Maximum power rating 10 mW at 25°C to 3.25 mW at 100°C
