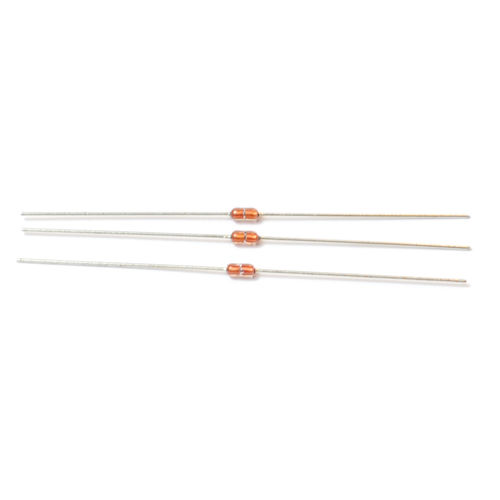

NTC thermistor DT Series

glass-encapsulated

Diode Type NTC Thermistor (DT Series) Description DT series 0.079” x 0.162” glass encapsulated thermistors have an operating temperature range from -50°C to 250°C, are available in numerous base resistances and Betas, can be supplied with tolerances up to ±1.0% at 25°C, and are available with 0.02” x 1.10” un-insulated lead wire. RoHS Compliant. Click on the “Learn More” button for more information. Specifications Custom Thermistors: For Custom DT Series Thermistors - contact Selco Resistance at 25ºC: 10K - 500K Beta: 3977K, 3695K, 3435K (25ºC/85ºC) Tolerance at 25ºC: ±1%, ±3%, ±5% Description Below are some example part numbers with application specific probe housing, lead wire details, overall length, etc. These assemblies are typically RoHS compliant. DT-D100K-1 NTC thermistor, 100K Ohm base resistance at 25°C, Beta of 4262K (25/85), tolerance of ±1.0% at 25°C, with 0.095” epoxy bead diameter, with #30 AWG tinned copper un-insulated leads, with an overall length of approximately 2.0”. DT-A010K-1 NTC thermistor, 10K Ohm base resistance at 25°C, Beta of 3977K (25/85), tolerance of ±1.0% at 25°C, with 0.095” epoxy bead diameter, with #30 AWG tinned copper un-insulated leads, with an overall length of approximately 2.0”. For more customization options, please fill out our Custom Design Assistance form or contact us today!
