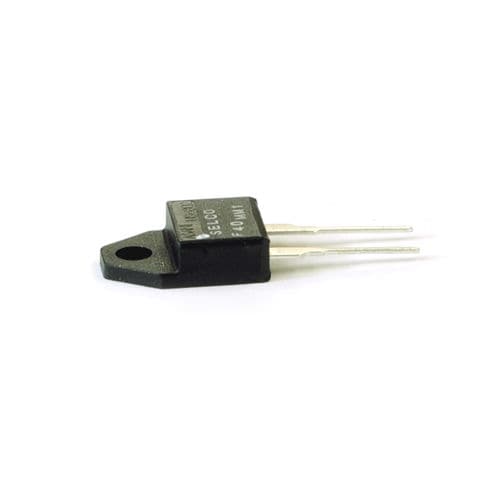

Preset thermostat 802 Series

miniature

PCB Thermostats With advances in technology, manufacturing, and electronics improving drastically, equipment tends to get smaller and smaller. In order to monitor temperatures in these very small spaces, we have our PCB Thermostat line, the 802 series. The 802 series is a miniature bimetal thermostat, with the reliability and consistency proven in our disc thermostats. They conform to the international Y220/TO220 package and are single pole-single throw, available both normally open or normally closed, at factory preset temperature set points ranging from 40°C (104°F) to 120°C (248°F), and suited for environmental temperatures up to 140°C (284°F). PCB Thermostat - Close on Rise: 802F-040 Specifications Series: 802 Open/Close On Rise: Close (Normally Open) Close Temperature: 104°F±9°F (40°C±5°C) Open Temperature: 77°F±12°F (25°C±7°C) Control Type: Fan Controls Environmental: 284°F Circuit Resistance: 50m ohms or less (initial value) Insulation Resistance: 100M Ohms or more (with a 500 VDC megger) Material: Body Housing - PBT (Polybutylene Terephtalate) UL-94 VO Terminals - Tin plated brass Contacts - Gold plated silver Approval: UL, C-UL, RoHS
