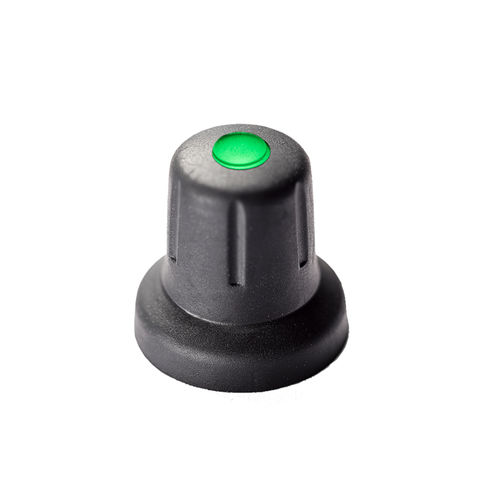

Knurled knob 07 Series

cylindricalpolypropyleneilluminated

Encoder Illuminated Knob 3/07DPN175-006: 3/07DPN175-006 Specifications Size: 17mm Base Diameter: 0.67" (17mm) Overall Height: 0.65" (16.4mm) Shaft Depth: 0.31" (8mm) Shaft Style: D Shaft Shaft Size: 6mm x 4.5mm Flat Finish: Soft Material: Polypropylene and Elastomer Description A new series of encoder knobs feature the look of our 3/05 series without a pointer. These knobs are now available non illuminated and illuminated to operate with a customer supplied LED potentiometer. Available in the industry standard "D" shaft or splined shaft they offer a smooth feel over the full range of travel. They are available in a hard or soft touch finish and aimed at the cost conscious markets such as audio, video and lighting. Custom options available such as styles, colors and markings. 07 Series The 07 series potentiometer encoder knobs are precision engineered components designed for use in audio, lighting and video control applications. With an industry standard 6mm D or knurled shaft mechanical fitting, the 07 series of encoder knobs are equally suited to use on existing products or design-in on new products. Precision molding offers a smooth feel over the full range of travel. Besides a range of standard finishes, customers may also specify customized congurations to match existing control interfaces or suit the design of new products. The 07 series push-on encoder knobs are supplied as standard with hard or soft touch finishes. Applications Avionics, Broadcast, Communications, Industrial, Medical, Pro Audio
