Non-threaded knob 3/ Series

conicalrubberthermoplastic

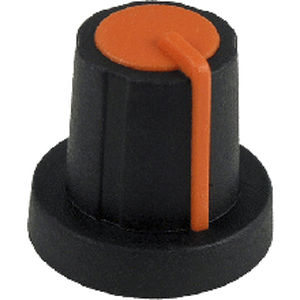

Two Color Soft Touch Push-On Knobs Selco has been leading the audio, music and lighting industry since 1975 with our popular line of two shot knobs. A two shot molding process is used so that the cap/pointer is an integral part of the knob, thus avoiding additional assembly costs. Soft touch knobs are polypropylene and thermoplastic elastomer to provide a smooth velvet feel. Push-On Knob Two Shot Splined: 3/03TP110 006 Specifications Size: 11mm Base Diameter: 0.45" (11.5mm) Overall Height: 0.57" (14.4mm) Shaft Depth: 0.49" (10mm) Shaft Style: Splined Shaft Size: 6mm (18 splines) Material: Polypropylene and Elastomer Description A two shot injection molding process is used so that the cap/pointer is an integral part of knob, thus avoiding subsequent assembly cost. The soft touch knobs are molded in polypropylene and thermoplastic elastomer to provide a smooth velvet rubber feel. The standard body color is black, other color are available to order. Pointers are available in a wide range of color refer to color chart in documents section.
