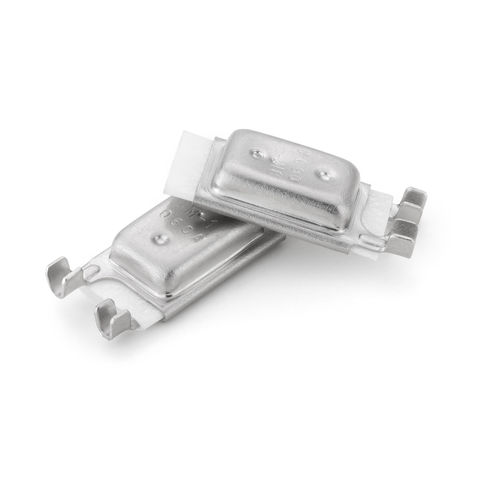

Thermal protector BM1 Series

Thermal Protectors: BM1-180A-000N Description The response of the BM-1 thermal protector is determined by current. It has a high contact rating and high temperature ratings which makes it a perfect solution for motors, solenoids, lighting ballasts, transformers, heating, battery pack and more. The BM-1 is typically stocked without leads and and can be customized with leads, connectors and sleeves per your request. Specifications Type: Automatic Reset Function: Open On Rise (Normally Closed) Mounting/Sensing: Surface/Air Open/Close On Rise: Open (Normally Closed) Opening Temperature: 356°F±9°F (180°C±5°C) Closing Temperature: 276.8°F±27°F (136°C±15°C) Electrical Rating: 125VAC, 20 AMPS, 10,000 CYCLES 250 VAC, 8 AMPS, 10000 CYCLES 16VDC, 20 AMPS, 10000 CYCLES 24 VDC, 10 AMPS, 10000 CYCLES Terminal Configuration: Radial, Bare
