E-glass fiber EQX series

fabriccut

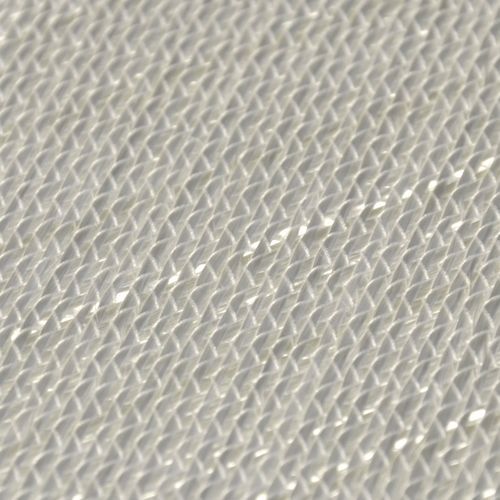

Quadriaxial Non Crimp Fabrics (NCF) in “E” glass fiber, are made up of layers with parallel fibres laid in 4 orientations, stitched with texturized polyester yarn. The most commonly used Quadriaxial Non Crimp Fabrics (NCF) are oriented at 0º+45º90º-45º. The layers at 90º can be placed on the outer surface or between the other layers. The layers at ±45º can placed at choice (i.e. 0º+45º90º-45º or 0º-45º90º+45º) It’s also possible to have ±30º or ±60º on request. The longitudinal direction of 0° is always the direction of the length of the roll and the stitching direction. Quadriaxial Non Crimp Fabrics (NCF) are produced in a standard width from 1270mm to 2540 mm and, or they can be cut in tapes without the fibres fall apart. Currently the know-how developed over the years has allowed the production of a range of Quadriaxial Non Crimp Fabrics (NCF) ranging from 600 gr/M² to 4000 gr/M². Resin Compatibility E-Glass fibers used for the production of our multiaxial – non crimp fabrics are coated with a broad range of sizing to provide compatibility with multiple resin systems. Fiber orientation Selcom Multiaxial – Non Crimp Fabrics (NCFs) are made up of layers with parallel fibres laid in different orientations, stitched with texturized polyester yarn. The most commonly used Multiaxial - Non Crimp Fabrics (NCF) are oriented at ±45º or 0º90º,but it’s also possible to have ±30º or ±60º on request. The longitudinal direction of 0° is always the direction of the length of the roll and the stitching direction. Drapeability The parallel fibre layers are stitched with a texturized polyester yarn. There can be different stitching types, depending on the final application.
