Characteristics

Material
fiberglass
Form
fabric

Description

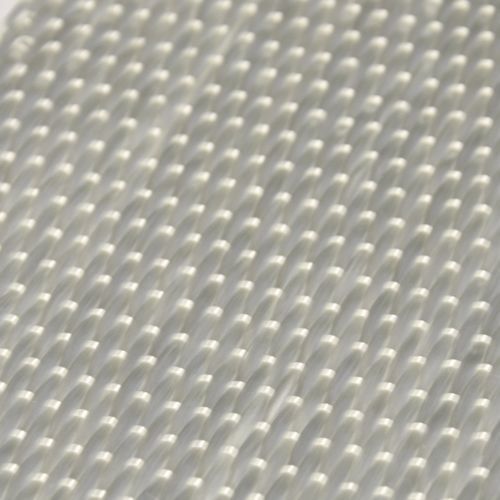

Unidirectional woven tapes in E-Glass have a single orientation 0º, produced with conventional technology warp-weft. Weft direction is normally in “E” glass fibre, and can be thermofixed, a process which gives more stability to cutting and handling. These items are produced in a standard width from 20mm to 300 mm. Currently the production range of unidirectional tapes goes from 300 gr/M² to 1200 gr/M² Resin Compatibility E-Glass fibers used for the production of our multiaxial – non crimp fabrics are coated with a broad range of sizing to provide compatibility with multiple resin systems. Selcom Multiaxial – Non Crimp Fabrics (NCFs) are manufacured to meet the individual needs of our customers. All the fabrics can be based on the final application in order to deliver the expected performance. Fiber orientation Selcom Multiaxial – Non Crimp Fabrics (NCFs) are made up of layers with parallel fibres laid in different orientations, stitched with texturized polyester yarn. The most commonly used Multiaxial - Non Crimp Fabrics (NCF) are oriented at ±45º or 0º90º,but it’s also possible to have ±30º or ±60º on request. The longitudinal direction of 0° is always the direction of the length of the roll and the stitching direction. Drapeability The parallel fibre layers are stitched with a texturized polyester yarn. There can be different stitching types, depending on the final application. Our stitching patterns are Tricot, Pillar (Chain) or Pillar-Tricot.
