E-glass fiber ETXL series
fabriccut

E-glass fiber - ETXL series - SELCOM SRL - fabric / cut
E-glass fiber - ETXL series - SELCOM SRL - fabric / cut
E-glass fiber - ETXL series - SELCOM SRL - fabric / cut - image - 2
E-glass fiber - ETXL series - SELCOM SRL - fabric / cut - image - 3
E-glass fiber - ETXL series - SELCOM SRL - fabric / cut - image - 4
E-glass fiber - ETXL series - SELCOM SRL - fabric / cut - image - 5
E-glass fiber - ETXL series - SELCOM SRL - fabric / cut - image - 6
E-glass fiber - ETXL series - SELCOM SRL - fabric / cut - image - 7
Add to favorites
Compare this product


Characteristics

Material
E-glass
Form
fabric
Technical characteristics
cut

Description

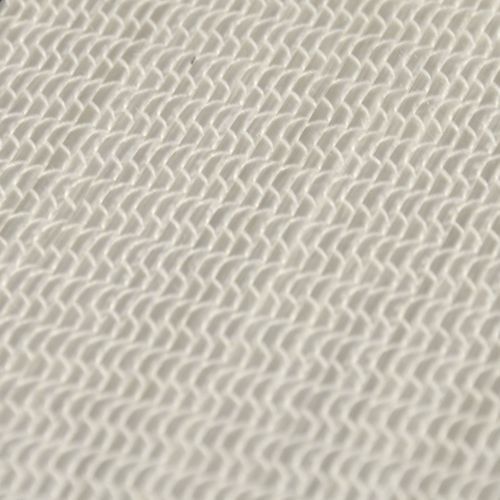

Triaxial Non Crimp Fabrics (NCF) in “E” glass fiber, are made up of layers with parallel fibres laid in 3 orientations, stitched with texturized polyester yarn. The most commonly used Triaxial Non Crimp Fabrics (NCF) are oriented at 0º±45º or +45º90º-45º. The layers of 0º and 90º can be placed on the outer surface, or between the ±45º layers. It’s also possible to have ±30º or ±60º on request. The longitudinal direction of 0° is always the direction of the length of the roll and the stitching direction. Triaxial Non Crimp Fabrics (NCF) are produced in a standard width from 1270mm to 2540 mm and, or they can be cut in tapes without the fibres fall apart. Currently the know-how developed over the years has allowed the production of a range of Triaxial Non Crimp Fabrics (NCF) ranging from 400 gr/M² to 2400 gr/M². Resin Compatibility E-Glass fibers used for the production of our multiaxial – non crimp fabrics are coated with a broad range of sizing to provide compatibility with multiple resin systems. Selcom Multiaxial – Non Crimp Fabrics (NCFs) are manufacured to meet the individual needs of our customers. All the fabrics can be based on the final application in order to deliver the expected performance. Fiber orientation Selcom Multiaxial – Non Crimp Fabrics (NCFs) are made up of layers with parallel fibres laid in different orientations, stitched with texturized polyester yarn. The most commonly used Multiaxial - Non Crimp Fabrics (NCF) are oriented at ±45º or 0º90º,but it’s also possible to have ±30º or ±60º on request. The longitudinal direction of 0° is always the direction of the length of the roll and the stitching direction.
