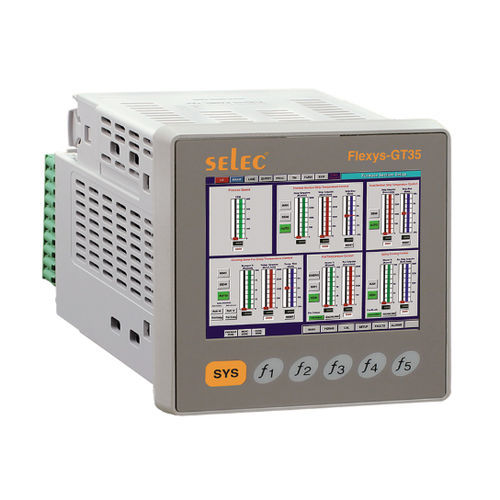

Panel-mount PLC Flexys GT35 series

with integrated I/Odigital outputsanalog outputs

• 96 X 96 Panel Mount PLC with 3 Slots for IO Cards. • 3.5 Inch Graphical touch Screen Colour Display. • 4 DI on Power Supply card • DI, DO, AI, AO as per card selection • 2 Channel Fast Input Upto 5 Khz • Power Supply :- 90 to 270 VAC/ 18 to 30 VDC • RTC, MODBUS and Proprietory Expansion • RJ25 MODBUS RS485 Slave and Master Communication port for Downloading and Communication Purpose Brief Specifications Display Type : 3.5” LCD With Touch Screen + 6 Keys (5 User Configurable) Size : 99 x 99mm Digital Inputs : 4 Digital Inputs On Power Supply Cards + As Per Flexys Card Selection Analog Inputs : As Per Flexys Card Selection Digital Outputs : As Per Flexys Card Selection Analog Outputs : As Per Flexys Card Selection No. of Slots : 3 RTC With Time Switch Function : Available Code Memory : 256KB Communication Interface : RS485 Based MODBUS RTU Protocol Expansion : Yes Supply Voltage : 90 to 270 VAC / 18 to 30 VDC Mounting Type : Panel Mount
