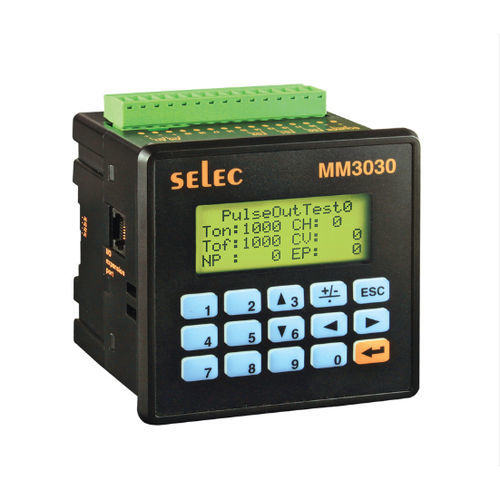

Panel-mount PLC MM3030

DIN railwith integrated I/Odigital outputs

• 96X96 size, Rail/Panel Mount PLC, LCD Text Display with 16*4 Characters with Yellow Green Display with 15 Keys. • 10 Digital Inputs and 8 Transistor Outputs • 2 Fast Output upto 50kHz • 2 Analog Inputs (0-10V /0-20mA) • 3 channel Fast Inputs upto 12kHz • Inbuilt RTC, Expansion through Modbus or Properitory protocol • Product has MODBUS RS485 Serial Ports for Downloading and Communication Brief Specifications Display Types : 4 x 16 Characters LCD (With Backlight) + 15 Keys (12 User Configurable) Size : 96 x 96mm Digital Inputs : 10 (PNP Type) Including 3 Fast Inputs Channels Analog Input : 2 Channels (0-10V / 0-20mA) Digital Outputs : 8 Transistor Outputs, Including 2 Fast Output Channels Output Rating : Fast Outputs: Sink type 50mA @24VDC, Normal Outputs: Source type 100mA @24VDC Analog Outputs : NA RTC With Time Switch Function : Yes Code Memory : 351KB Communication Interface : RS485 / RS232 Based MODBUS RTU Protocol, Proprietary Protocol Expansion : Yes Supply Voltage : 18 to 30 VDC Mounting Type : Panel/DIN Rail
