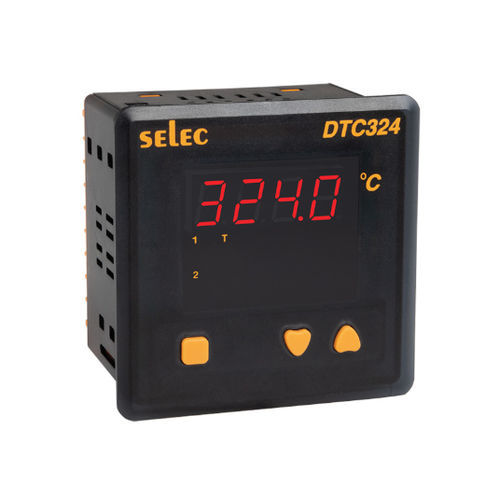

Temperature controller with LED display DTC324A-2

PIDIP65panel-mount

• 4 digit single display temperature controller • (TC: J, K, T, R, S/ RTD: PT100) sensor input • ON-OFF/Auto tune PID control • Dual set point • 10A relay/ 12V SSR control output • Auxiliary 5A relay output • 96 mm x 96 mm size • 90 to 270V AC/DC supply voltage Display Type : 7 Segment LED Single Display Display Configuration : 4 digits Type of Input : Thermocouple (J,K,T,R,S) / RTD (PT100) Resolution : 0.1/1° for TC/RTD(fixed 1° for R and S TC) Accuracy : For TC (J, K, T) inputs: 0.25% of F.S. ± 1 ° For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1 Control Output : RELAY or SSR. Auxiliary Output : RELAY Control Mode : Auto Tune PID / ON-OFF Supply Voltage : 90 to 270V AC/DC Size : 96 x 96mm Mounting Type : Panel Mount
