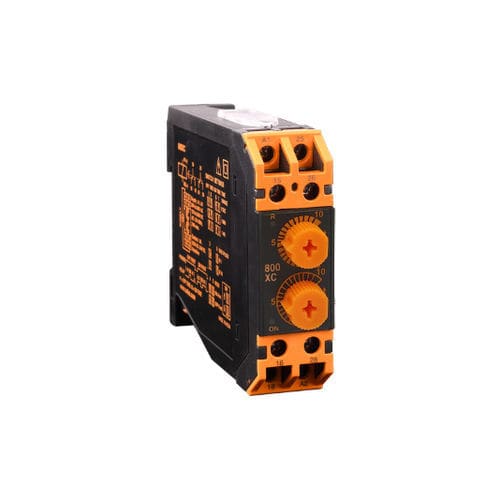

Analog timer 800XCDIN railDPDTasymmetrical
Add to favorites
Compare this product
Characteristics
- Technology
- analog
- Mounting
- DIN rail
- Other characteristics
- DPDT, asymmetrical
- Voltage
Max.: 240 V
Min.: 12 V
Description
• 6 Time ranges
• LED Indications : Power ON, Relay ON
• Cyclic timer with Unequal ON & OFF Time
• Universal supply voltage, Finger safe terminals
Brief Specifications
Output Contact : 2 C/O (DPDT)
Operating Modes : Asymmetrical Cyclic ON first or OFF first
Counting Direction : Down
Accuracy : Setting:±0.1 of set time or ±50 m sec (whichever is greater) For Y contact operation: + 100 m sec, Repeat: ± 0.1%
Range : 1/10/sec/min/hr for both ON & OFF time
Size : 22.5 mm
Mounting Type : DIN rail mount
Certification : CE & UL
