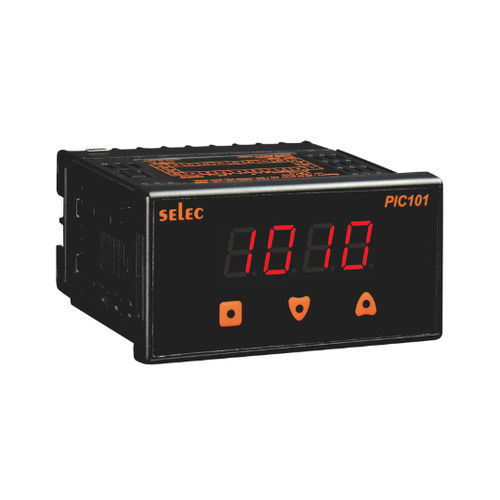

Process indicator PIC101N series

temperaturedigitalanalog

• 4 digit single display process indicator • Universal input (TC: J, K, T, R, S/ RTD: PT100) • Signal input: (-5 to 56mV, 0 to 10V DC, 0/4 to 20 mA DC) • 24V DC @ 30mA sensor supply • 48 mm x 96 mm size • Panel mount • 90 to 270V AC/DC supply voltage • CE & UL Brief Specifications Display Type : 7 Segment LED Display Configuration : 4 digits Type of Input : Thermocouple (J,K,T,R,S) / RTD (PT100), Single Input (DC): 0 to 56mV, 0 to 10V, 0/4 to 20mA Resolution : TC/RTD: 1/0.1°, analog input 1/0.1/0.01/0.001 Accuracy : For TC inputs: ± 0.25% of F.S ± 1º R & S inputs: ± 0.5% of F.S. ± 2º (20min of warm up time) For RTD inputs: ± 0.1% of F.S. ± 1º Cold junction accuracy:± 5ºC, Single input: ± 0.5% of F.S,± 1 digit Sensor Supply : 24V DC, 30mA Supply Voltage : 90 to 270V AC/DC Size : 48 x 96mm Mounting Type : Panel Mount Certification : CE & UL
