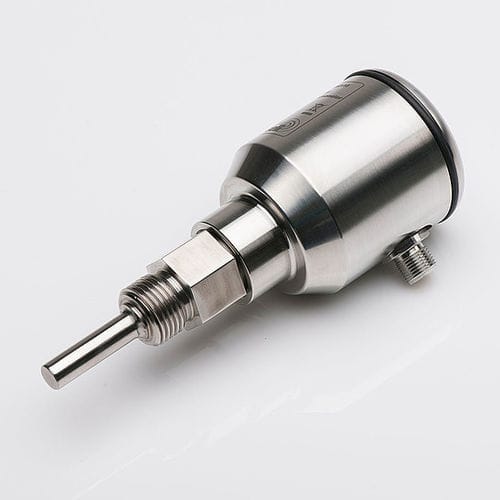

Pt100 temperature probe TF 12

threadedprocessstainless steel

Features Standard process adaptation with G1/2” threaded connection interchangeable measuring insert (no process opening) interchangeable terminal head optional with freely programmable head transmitter 4…20 mA protective fitting according to DIN 43 753 stainless steel No. 1.4571 optional: calibration certificate with tracing evidence according to DIN ISO 9000 ff Technical specifications 1 or 2xPt100 class A Probe length from 50 mm to 2500 mm standard range of application -50ºC up to 400ºC aluminium / stainless steel terminal head with screw connection or M12-connector barstock diameter 9 x 1 mm protection class (version dependent) operating pressure max. 30 bar
