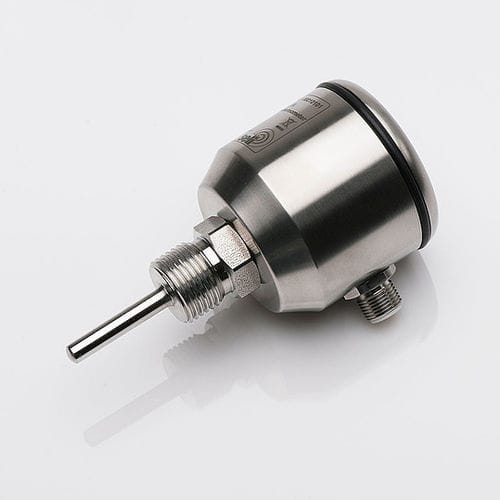

Pt100 temperature probe TF 32IP69Kprocessstainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- Pt100
- Protection level
- IP69K
- Applications
- process
- Other characteristics
- stainless steel, 4-wire, programmable
- Temperature
Max.: 200 °C
(392 °F)Min.: -50 °C
(-58 °F)
Description
Features
standard process adaption with 1/2” weld-in pocket
optional with freely programmable head transmitter
medium-affected components made of stainless steel No. 1.4404
Technical specifications
1 xPt100 class A in 4-wire circuit, class A 1/3 DIN
probe length 50 to 2500 mm
standard range of application -50ºC up to 200ºC
stainless steel terminal head with screw connection or M12-connector
protective fitting diameter 6 mm
protection class up to IP69K
