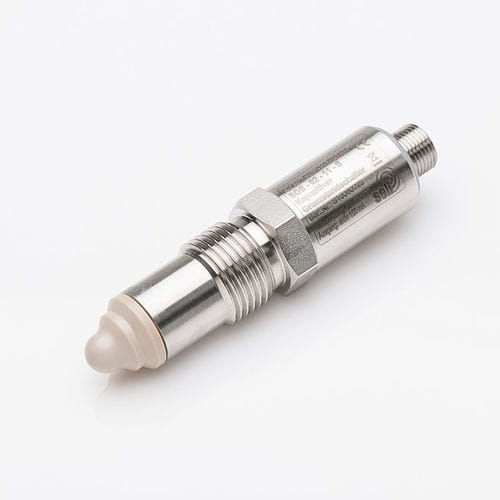

Oil level switch SGS-02-11-S

for the food industrystainless steelIP68

Features level-limit switch for aqueous and oily substances turn-on and shut-off thresholds selectable via software (not necessary to have 2 devices) standard: aqueous substances weld-in sleeve system and modular process connections aseptic measuring point medium-affected components are made of Peek particularly high measurement dynamics partially cast FDA, EHEDG conform Technical specifications stainless steel terminal head material Nr. 1.4305 connection: M12-connector thread G1/2” elastomer-free seal system CIP- / SIP cleaning 0…150ºC (30 min) supply voltage 20…32 VDC output signal PNP (standard), NPN or Push-Pull reversible / break contact, turnkey reversible start-up delay < 0.3s response time <0.2s ambient temperature -10…+70ºC permissible substance temperature permanent 0…+100ºC storage temperature -20…+70ºC operating pressure max. 10 bar (higher pressures upon request) protection class up to IP68 /69K tightening torque 5…20 Nm permitted electrical load: 100mA
