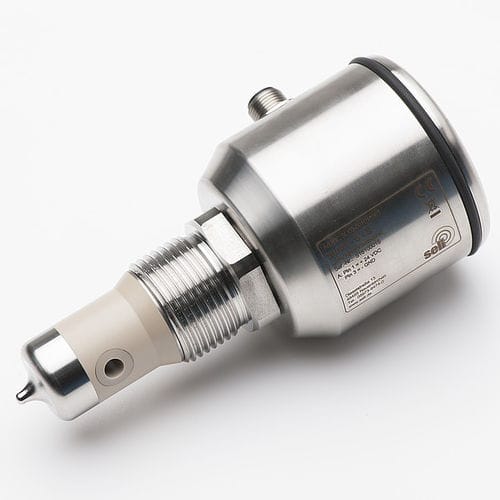

Conductivity measuring instrument SLI03-6-S

inductiveprocessfor medical applications

Features inductive measuring system for conductivity recording in plant engineering and process measuring technology new, very compact design robust construction in hygienic design measuring ranges freely configurable via graphic display or software housing made of stainless steel 1.4305 graphic display screen for conductivity, temperature and control extremely fast response times temperature: t90< 9 sec. conductivity: t90< 1 sec. (damping=1) FDA, EHEDG conform Technical specifications analogue output for conductivity and temperature in each case 4…20mA 14 basic measuring ranges 4 measuring ranges remotely reversible intelligent temperature compensation temperature application ranges: substance (permanent): 0ºC to 100ºC substance max. (1h): 0ºC to 150ºC modular process connection technology installation in pipelines starting from pipe nominal diameter DN 50
