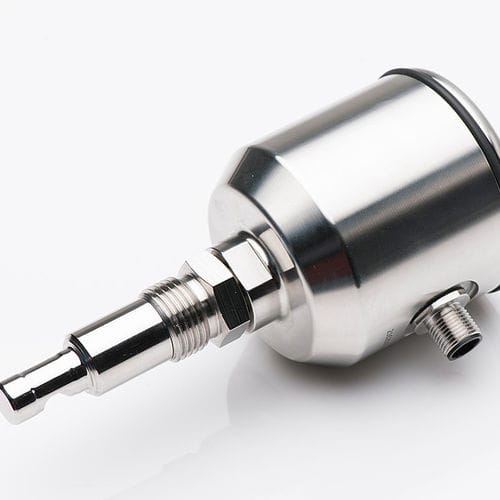

Turbidity sensor STS 01

Features secure phase separation quick product change-over reduced waste water costs filter monitoring concentration measurements colour-independent compact design with integrated electronics and display for configuration resilient sapphire windows CIP/SIP suitable hygienic design, polymer-free seal system LED light source guarantees steady and long-life signal integrated digital and analogue output straightforward configuration process monitoring and documentation Technical specifications measuring range 0-100% LED light source wave length 880 nm optical path length 5, 10 and 20 mm stainless steel 1.4404 (316L) finish quality electro-polished <0.37 µm Ra sapphire window supply voltage 12…30 VDC output current 4…20 mA output PNP 24 V, opener / turnkey configurable / max. 200 mA input contact in zero position cable connection M12 plug-in, 5-pole Process connection G1/2” elastomer-free seal system ambient temperature -20…70ºC process temperature 0…90ºC, 140ºC maximum for 2h (SIP cycle) max. process pressure 10 bar (150 psi) at 60ºC
