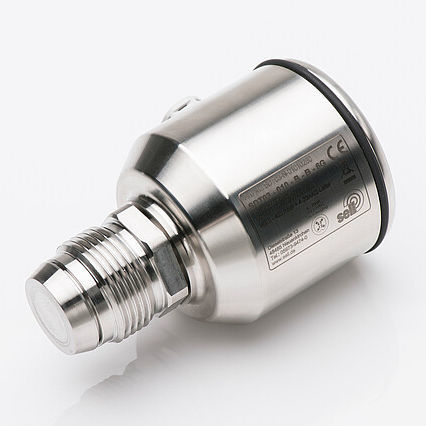

Relative pressure transducer SDT 03

steelIP69Kfor the food industry

>> Digital input for zero point adjustment >> Relative Pressure >> Integrated control + indicator display optional >> Freely adjustable as tank level indicator & linearisation >> up to 30 support points (via free software) >> Configuration via display & possibility for >> software- supported visualisation and configuration >> Very quick compensation of temperature jump >> Wetting parts made of high-grade steel 1.4435 >> Housing made of high-grade steel 1.4404 >> Pressure screw for free positioning >> Individual measuring range adjustment >> Smallest measuring range 100 mbar >> Turndown 4:1 >> Fourfold overload >> Galvanically isolated electronics >> Insulation voltage: 300V >> Totally front-flush membrane >> FDA, EHEDG-conformal Technical specifications >> Accuracy according to IEC 60770: 0,1 % of adjusted measuring value >> Long-term stable >> Short-circuit-proof + reverse voltage protected >> Customized remarks: >> special measuring ranges >> variable electric and mechanical connections >> further designs upon request
